Program implements simple game -- Star Wars. User selects ships and ships are started to destroy if user selected three or more similar ships (interface.jpg). Game has time limitation, score calculation and time bonuses. Design of the game could be done easier but it was done in more extended way in order to master OO concepts. Realization
Platform: Win32. Language: C++. Interface: Win32 API. Reference: Jeffrey
Richter, Advanced Windows.
Status: not finished.
AbstractTimer -- realize functionality of visible timer (watch). Class
implements all functions to manipulate time but still has abstract method
draw() from VisibleObject. Class uses objects Digit for each digit and
Elements for separators.
AnimatedObject -- realizes animation in system. Class uses functionality of
ImageList for storing animation frames and implements methods of
VisibleObject what allows inserting this object to Panel. AnimatedObject
creates separate thread for output frames, can show each frame, whole
animation once and several times in loop. Several AnimatedObjects can be
synchronized in order to show complex animation when several animations
can overlapped but all frames are showed synchronically (Critical Sections).
BigTimer -- realize representation of visible timer with wide or liquid crystal
lines. Class initiates creation of LiquidCrystalDigitElement trough Digit and
implements method draw() through calling of draw() of all digits.
Counter -- realizes universal counter. Class uses objects Digit for
representation each digit. Size of Counter and type of used classes in each
Digit (ThinDigitElement, WideDigitElement or LiquidCrystalDigitElement)
can be configured in constructor.
Digit -- realizes electronic type digit. Digit is constructed from seven
Elements. Size of digit, brightness and type of used elements
(ThinDigitElement, WideDigitElement or LiquidCrystalDigitElement) can be
configured in constructor.
Field -- realizes one field of board. Class implements status of field and has
reference to Ship appropriate in current status. Ships are shared between
fields and Space has set of Ship objects.
ImageList -- loads images from resource, keeps images list and implements
functions for manipulation of images.
LiquidCrystalDigitElement -- extends functionality of WideDigitElement and
realizes element that looks like liquid crystal one. Size, width and brightness
of element can be configured in constructor.
Panel -- realizes two main functions -- implements flat panel with bevels and
container for other objects that were derived from VisibleObject. Method
draw() draws panel first and calls method draw() of all inserted objects.
ThinDigitElement -- realizes one element of Digit and shows itself as single
line. Size and brightness of element can be configured in constructor.
Ship -- realizes representation of each type of ships in each status. Class
creates AnimatedObjects for showing of animation and implements specific
functions of ship.
SmallTimer -- realize representation of visible timer with thin lines. Class
initiates creation of ThinDigitElements trough Digit and implements method
draw() through calling of draw() of all digits.
Space -- is manager of program. Class has set of Ships that are shared
between Fields, set of Fields, general interface panel and system timer. Class
implements construction, destruction and logic of program (random selection
of next field and changes status of fields (on timer event)). Class receives all
messages and forwards them to appropriate Field. If three or more same ships
are selected, Space creates new thread for handling this situation and
continues to work. New thread starts animation for appropriate ships and
died.
VisibleObject -- is abstract class and provides interface for all visible objects.
All classes that were derived from VisibleObject can be inserted to Panel.
WideDigitElement -- realizes one element of Digit and shows itself as
multiple line. Size, width and brightness of element can be configured in
constructor.

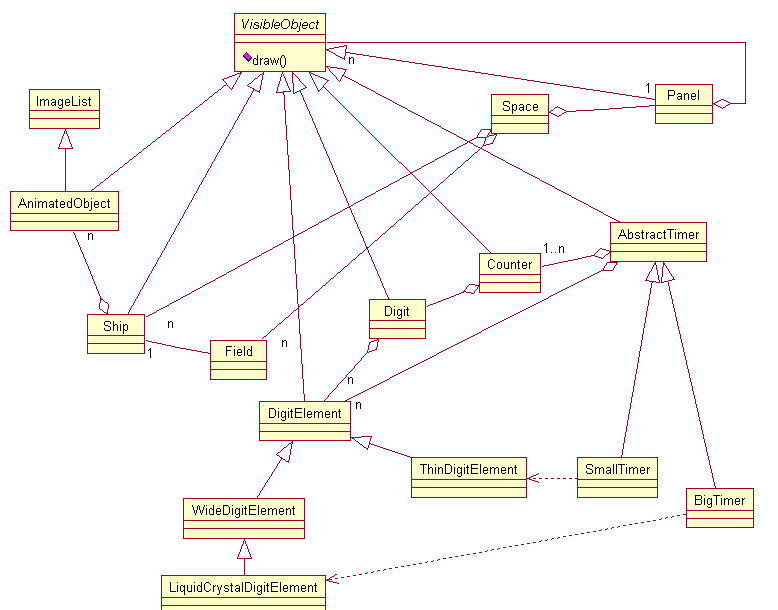

In this design I used three design patterns (I think, at least three).
1. VisibleObject + Panel -- Decorator
2. Space + Ship -- Flyweight
3. AbstractTimer + DigitElement -- Factory method, though
SmallTimer creates instance of ThinDidgitElement and BigTimer creates
instance of LiquidCrystalDigitElement through class Digit.
